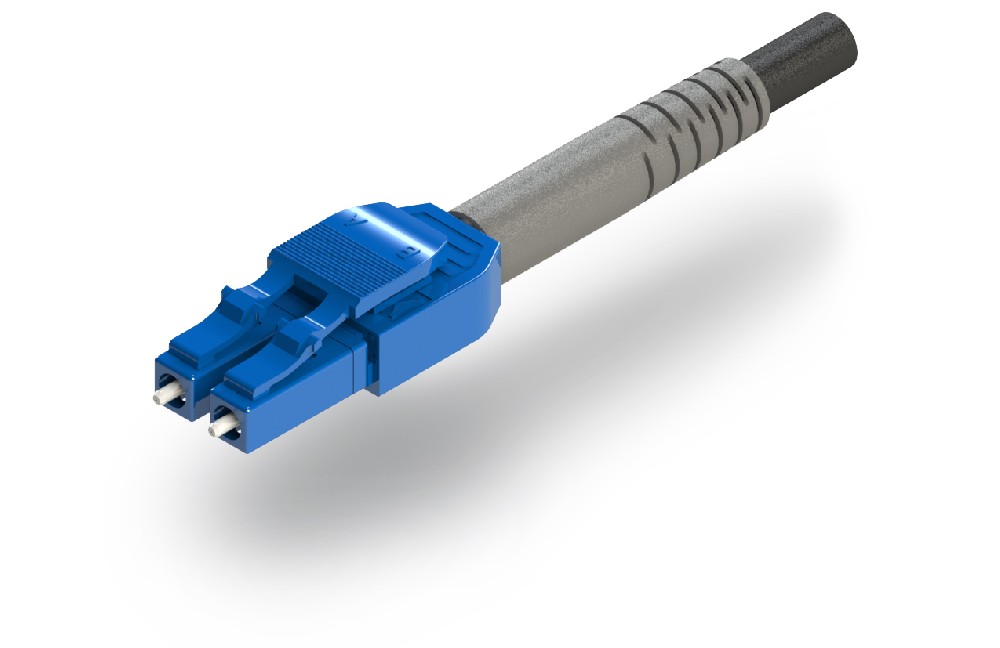

SUNCALL-LC Uniboot V5 Connector

The LC 5.0 mm Uniboot V5 connector manufactured by Suncall features a robust and durable structure, designed for use in FTTA applications.

Product Features

Metal stop and crimp structure significantly enhances tensile performance.
Provides strong tensile strength for optical cables.

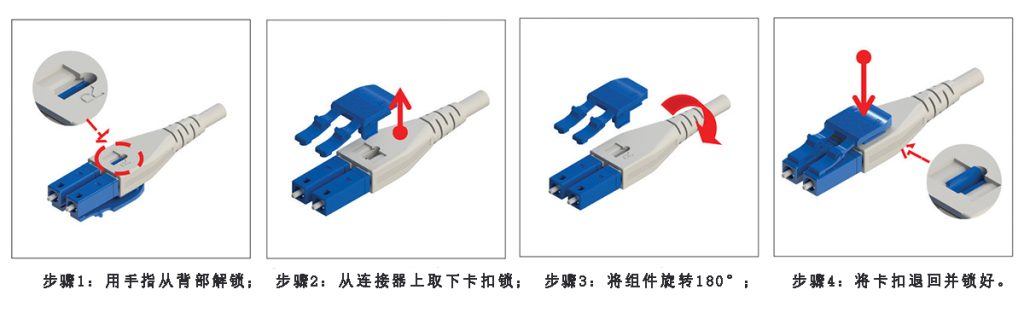

Polarity can be reversed simply by unlocking the latch and flipping the connector.
No fiber exposure during polarity reversal.
Complies with IEC 61754-20 and TIA-604-10A-2002 LC series standards.
Fiber Types: SM (9/125), MM (50/125, 62.5/125).
Applicable Modes: SM, MM, and APC.
Insertion Loss: 0.3 dB or less.
Return Loss: UPC (55 dB or less); APC (65 dB or less).
